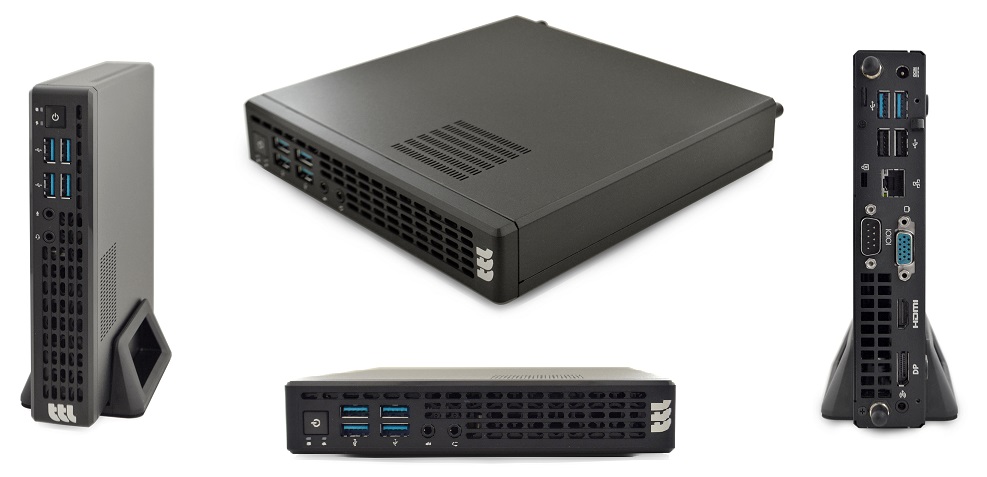

JPT

Downloads

HCL

Processor, Chipset and Memory

Processor    Intel® i5-6500 – 6th Generation, 4 Cores / 8 Threads (8 Mb Cache L3) 3.2 – 3.6 GHz, 64 bits. TDP 65W
Intel® VPRO
Chipset    Intel® Q170 – Intel® VPRO
RAM Memory    1x 8GB DDR4 2133 MHz, Non-ECC, Un-buffered
RAM Supported Memory    Up to 32 GB DDR4 2133 MHz
RAM slots    2x DIMM (1x free)

Storage

Storage    1x M.2 2280 SATA  6 Gb/s  256Gb SSD
Internal units  1x internal 2.5”, 1x M.2 SATA/PCIe SSD
Disk Controller    Intel Q170 chipset
SATA Ports    2x internal SATA 6 Gb/s

System Specifications

Chassis    Small-sized Desktop.Tool-less. 3.4 x 17.8 x 17.8 cm (Height x Width x Depth)
Integrated Graphics Card    Intel® HD Graphics 530  350Mhz – 1.15 Ghz.
Up to 1,7 Gb RAM DVMT. Simultaneous Triple Display Technology
Expansion Slots    1x M.2 Wifi Combo Card
Audio    Realtek® ALC233 HD Audio
LAN    1x Integrated Intel ® I219LM Gigabit EthernetLAN (10/100/1000 Mb/s), Intel® VPRO, PXE,  WOL
1x DisplayPort 1.2, 1x HDMI 1.4, 1x VGA DSub-15, 1 x RJ-45 Gigabit Ethernet Red
1x Rear Audio Jack Line Out, 2x Frontal Audio Jacks
8x USB 3.0 (4x at rear +  4x at front) with Power Share
TPM

Supported Technologies

• Intel® VPRO
• Intel® Virtualization Technology (Intel® VT-x & VT-d)
• Intel® Hyper-Threading
• UEFI BIOS (Updatable)
• Intel® Turbo Boost 2.0
• Enhanced Intel® SpeedStep
• Thermal Monitoring
• ACPI
• USB Boot

Power Supply

External 90W Class VI
Security    Padlock Loop, Kensington Slot.  TPM
Label    Customized according with customer specifications (S/N, MAC, Purchase order, P/N, etc), Optional Laser Marking with customer specifications
Manufacturing Services    Customer Master O.S. Cloning – PC and BIOS customization –  Customized Power Cord
Warranty    3 years Off-site – Original Parts – Own Technical Support Partner Net
Optional  5 years warrantyO.S.
Compatibility    Microsoft Windows 7 / 8 / 8.1 / 10, Linux (RHEL 6 / 7, CentOS, Ubuntu, etc )

Certifications

EPEAT Gold
Energy Star 6



The design features of the product may vary due to configuration and / or interested implementations upon request.
