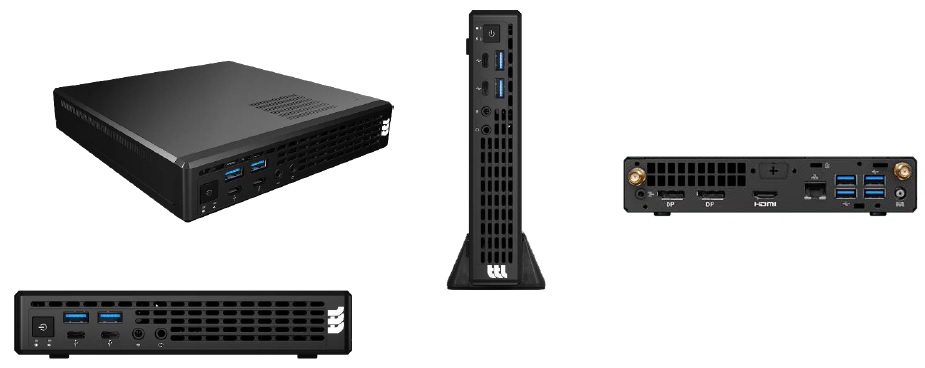

TeknoPack JPTQ370i58SSD

Downloads

HCL

Processor, Chipset and Memory

Processor:

  • Intel® i5-8500 – 8th Generation, 6 Cores / 6 Threads (9 Mb SmartCache) 3.0 – 4.1 GHz, 64 bits. TDP 65W
  • Intel® VPRO

Chipset: Intel® Q370 – Intel® VPRO
RAM Memory: 1x 8GB DDR4 2666 MHz, Non-ECC, Un-buffered
RAM Supported Memory: Up to 32 GB DDR4 2666 MHz
RAM slots: 2x SODIMM (1x free)

Storage

Storage: 1x M.2 2280 SSD 256 GB PCIe NVME
Internal units: 1x M.2 2280 SATA/PCIe, 1x internal 2.5”
Disk Controller: Intel Q370 chipset
SATA Ports: 2x internal SATA 6 Gb/s (1x M.2 format)

System Specifications

Chassis:

  • Small-sized Desktop.Tool-less.
  • Quick Release Side Panel.
  • 3.4 x 17.8 x 17.8 cm (Height x Width x Depth)

Integrated Graphics Card: Intel® HD Graphics 630. 350Mhz – 1.10 Ghz, Simultaneous Triple Display Technology
Expansion Slots: 1x M.2 Wifi Combo Card, 1x SATA 2.5″ HDD
Audio: Realtek® ALC233-VB2 Audio Codec
Network:

  • 1x Integrated Intel ® I219LM Gigabit EthernetLAN (10/100/1000 Mb/s)
  • Intel® VPRO
  • PXE – WOL
  • 1x WLAN 802.11ac 2×2, 2.4GHz & 5GHz, WPA2 Enterprise, WMM
  • 1x Bluetooth 4.2

Front and Rear Connectors:

  • 2x DisplayPort 1.2 (4K 60Hz)
  • 1x HDMI 1.4 (4K 30Hz)
  • 1x VGA DSub-15
  • 1 x RJ-45 Gigabit Ethernet LAN
  • Rear Audio Jack, 2x Frontal Audio Jacks
  • 8x USB 3.0 Charging & Data (4x at rear + 4x at front with 2x type-C)
  • 2x Antenna

Supported Technologies

  • Intel® VPRO
  • Intel® Virtualization Technology (Intel® VT-x & VT-d)
  • UEFI BIOS (Updatable)
  • Intel® Turbo Boost 2.0
  • Enhanced Intel® SpeedStep
  • Thermal Monitoring
  • ACPI
  • USB Boot

Power Supply

  • External 120W
  • Class VI (>=88% Efficiency)
  • PFC

Security: Padlock Loop, Kensington Slot. TPM
Label: Customized according with customer specifications (S/N, MAC, Purchase order, P/N, etc), Optional Laser Marking with customer specifications
Manufacturing Services: Customer Master O.S. Cloning – PC and BIOS customization
Warranty:

  • 3 years Off-site – Original Parts – Stcok of complete units on-site for replacement
  • Optional 5 years warranty

Compatibility: Microsoft Windows 10 Professional 64-bit, Linux (RHEL, CentOS, Ubuntu, etc)
O.S License: Windows 10 Professional OEM stored in BIOS

Certifications

EPEAT Gold



The design features of the product may vary due to configuration and / or interested implementations upon request.
