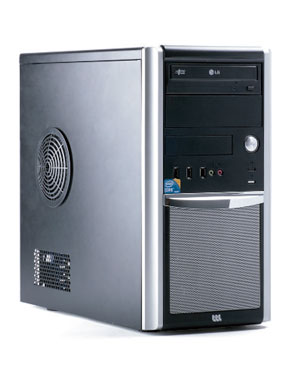

TTLTeknoPro
Drivers and downloads



PC manufacturer

ttl



PC model name

TeknoPro



Date when this model became generally available

Q4 – 2013



Foreseen or confirmed end-of-life date for this model

Q1 – 2016



URL of Web site providing relevant technical information and software in English or French (section 2.2.3 ofthe Technical Specification)



URL of Web site providing an official public price list



Processor

4th Generation Intel® Core™ i7-4790 Processor (8 Mb Smart Cache, 3.60 GHz) LGA1150 socket

– One PCI Express x16 graphics interface
– Integrated memory controller with dual channel DDR3 memory support
– Integrated graphics processing
– External graphics interface controller
Intel® Turbo Boost Technology 2.0
Intel® vPro Technology  (AMT 9.0)
Intel® Hyper-Threading Technology
Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® VT-x with Extended Page Tables (EPT)
Intel® TSX-NI
Intel® 64
Intel® My WiFi Technology
Idle States
Enhanced Intel SpeedStep® Technology
Thermal Monitoring Technologies
Intel® Identity Protection Technology
Intel® Stable Image Platform Program (SIPP)
Trusted Execution Technology
Execute Disable Bit
Anti-Theft Technology



Chipset

Intel® Q87 Chipset, consisting on the Intel® Q87 Platform Controller Hub (PCH)



Motherboard Manufacturer

Pegatron



Motherboard model name and reference number

ttl Q87-M1 by Pegatron



Number and type of thecontrollers

Six Serial ATA (SATA) 6 Gb/s ports.
Intel® Rapid Storage Technology / SATA RAID
Infineon® TPM IC on board



Number and type of PCI slots

Expansion capabilities

• One PCI Express x16 3.0/2.x/1.x add-in card connector
• One PCI Express x1 2.x/1.x add-in card connector
• Two Conventional PCI bus add-in card connectors



Memory

– Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
– Support for DDR3 1333 MHz to DDR3 1600 MHz DIMMs
– Support for 1 Gb, 2 Gb, 4 Gb and 8 Gb memory technology
– Support for up to 32 GB of system memory with four DIMMs using 8Gb memory technology
– Support for non-ECC memory
– Support for 1.5 V (standard voltage) and 1.35 V (low voltage)



Number and type of ports

USB Ports
– USB 3.0 Configuration (2 x Back + 2 x Internal)
– USB 2.0 Configuration (4 x Back + 2 x Front + 4 x Internal)

AUDIO:
– Audio 5.1-channel Intel (R) High Definition Audio (3 x Back + 2 x Front)

Remark: The desktop board includes two serial port header and one parallel port header.



BIOS

– American Megatrends (AMI) BIOS 128 Mb
– Support for Advanced Configuration and Power Interface
(ACPI), Plug and Play, SMBIOS, UEFI
– Flash (for BIOS update), ACPI compliant
– Bootable from USB device
– PXE (PrebooteXecution Environment) booting capability



Main memory

This configuration includes 2 x 4GB DDR3 1600MHz
– Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets (Two free slots)

The board has four DIMM sockets and supports the following memory features:
• 1.5 V DDR3 SDRAM DIMMs with gold plated contacts, with the option to raise the voltage to support higher performance DDR3 SDRAM DIMMs.
• 1.35 V Low Voltage DDR3 DIMMs (JEDEC specification)
• Two independent memory channels with interleaved mode support
• Unbuffered, single-sided or double-sided DIMMs with the following restriction: DIMMs with x16 organization are not supported.
• 32 GB maximum total system memory (with 8 Gb memory technology).
• Minimum recommended total system memory: 1 GB
• Non-ECC DIMMs
• Serial Presence Detect
• DDR3 1600 MHz, DDR3 1333 MHz, and DDR3 1066 MHz SDRAM DIMMs



Graphics

Integrated Intel® High Definition (Intel® HD) Graphics 4600
– VGA port
– DVI-D port
– HDMI port
– DP port

The Intel HD graphics controller features the following:
• 3D Features :
– DirectX* 11.1 support
– OpenGL* 4.0 support
• Video :
– Next Generation Intel® Clear Video Technology

– Supports triple independent display
– Support for a PCI Express 3.0 x16 add-in graphics card



Network

Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® I217LM Gigabit Ethernet Controller

The LAN subsystem consists of the following :
– Intel I217LM Gigabit Ethernet Controller (10/100/1000 Mb/s)
– Intel Q87 Express Chipset
– RJ-45 LAN connector with integrated status LEDs

Additional features of the LAN subsystem include:
– CSMA/CD protocol engine
– LAN connect interface between the PCH and the LAN controller
– Conventional PCI bus power management
• ACPI technology support
• LAN wake capabilities
– ACPI technology support
– LAN wake capabilities
– LAN subsystem software

The Intel I217LM Gigabit Ethernet Controller supports the following features:
Network Features:
• Compliant with the 1 Gb/s Ethernet 802.3, 802.3u, 802.3z, 802.3ab specifications
• Multi-speed operation: 10/100/1000 Mb/s
• Full-duplex operation at 10/100/1000 Mb/s; Half-duplex operation at 10/100 Mb/s
• Flow control support compliant with the 802.3X specification as well as the specific operation of asymmetrical flow control defined by 802.3z
• VLAN support compliant with the 802.3q specification
• MAC address filters: perfect match unicast filters, multicast hash filtering, broadcast filter, and promiscuous mode

Performance Features:
• Configurable receive and transmit data FIFO, programmable in 1 KB increments
• TCP segmentation capability compatible with Windows NT 5.x off-loading features • Fragmented UDP checksum offload for packet reassembly
• IPv4 and IPv6 checksum offload support (receive, transmit, and TCP segmentation offload)
• Split header support to eliminate payload copy from user space to host space
• Receive Side Scaling (RSS) with two hardware receive queues
• Supports 9018 bytes of jumbo packets
• Packet buffer size
• LinkSec offload compliant with 802.3ae specification
• TimeSync offload compliant with 802.1as specification

Power Management Features:
• Magic Packet* wake-up enable with unique MAC address
• ACPI register set and power down functionality supporting D0 and D3 states
• Full wake up support (APM, ACPI)
• MAC power down at Sx, DMoff with and without WoL
• Auto connect battery saver at S0 no link and Sx no link
• Energy Efficient Ethernet (EEE) support
• Latency Tolerance Reporting (LTR)
• Optimized Buffer Flash/Fill (OBFF) support
• ARP and ND proxy support through LAN Connected Device proxy
• Wake on LAN (WoL) from Deep Sx
• Provides lower power usage



Hard disk drive

One disk, 2.5”, 320 GB, 7200RPM, SATA-3 6 Gb/s



Optical drive

DVD +/-RW SATA x24



Audio

Audio 5.1-channel Intel (R) High Definition Audio via the Realtek ALC662VD



Case

– Tower format
– With openings at the rear for all PCI and PCI Express connectors.
– Two frontal USB 2.0
– Two internal 3.5” device bays (one occupied by the hard disk) and adapters to feet 2.5” disks.
– Tooless
– The case can be lockable.
– Dimension (DxWxH): 37,5 cm x 19,8 cm x 37,0 cm



Power supply and ventilation

Power Supply:
– 100 – 240V
– 50Hz-60Hz
– 80 PLUS qualified
– Active PFC
– 350W
– Power cord with Swiss plug (1.8m long).
– TTL Computers manufactured by TTL.  Our computers are built using Intel components such as motherboards, microprocessors and chassis); and non-Intel components like memory, HDD, Optical Drive or power supply. All of them tested and certified for a machine loaded to its maximum capacity in terms of memory, device bays  and expansion cards.

Ventilation:
– Chassis design for high and optimized ventilation
– Microprocessor with active heatsink



Noise

30 Db(A) (measured at 40cm from the rear of the PC unit).



Eco label

EPEAT GOLD CERTIFICATED



Operating system, compatibilityand pre-loading

TTL ensure that all system components operate under Red Hat Enterprise Linux 6 distribution (32 and 64 bit).

TTL agree to pre-load a system image provided by CERN on the hard drive of every desktop PC supplied.

This configuration includes:
– Microsoft Windows 8 Pro 64 bits (OEM) license.

TTL as OEM or Microsoft Certified Gold Partner can supply the PC with the updated version of the operating system.



Identification and Security

TTL will apply on all the supply the security mark, “PROPRIÉTÉ CERN”, provided by CERN on a non-removable part of the PC.

The label size will be adapted to the needs of CERN.



Warranty

3 years, warranty. Three year parts and labor (according to contract)



The design features of the product may vary due to configuration and / or interested implementations upon request.
